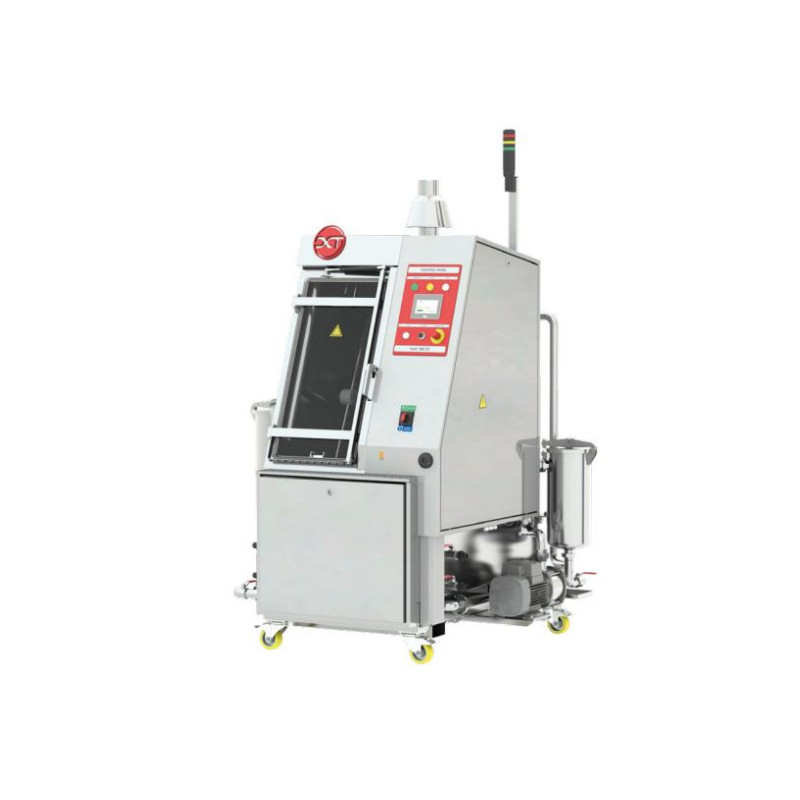

The InJet® 388 CRRD “Combo” is primarily designed for precision plate cleaning after soldering. The cleaning system can also be used for high-quality removal of solder pastes and SMT adhesives from stencils, PumpPrint, squeegees and misprints, or the aforementioned cleaning applications, along with cleaning the boards after soldering. It is also possible to use the machine to remove the cured conformal coatings.
The InJet® 388 series cleaning systems represent unique vertical Spray-In-Air technology developed and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the shadowing effect commonly seen in horizontal cleaners, and maximizes the efficiency of the cleaning process as the cleaning fluid is sprayed directly onto the to be cleaned components.
- 1 PROCESS CHAMBER

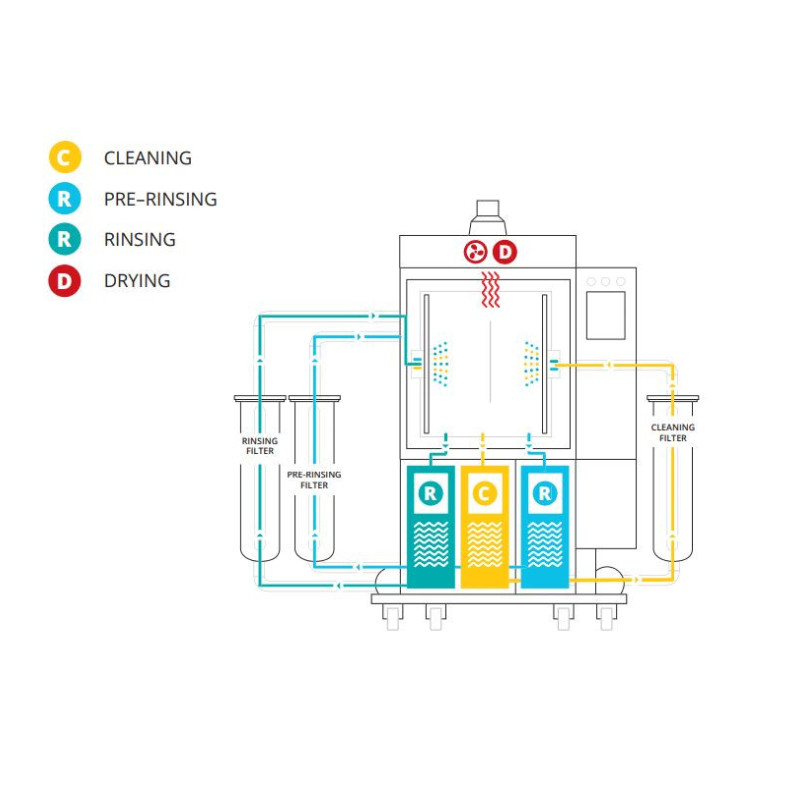

- 4 PROCESSES - CLEANING, PRERINSING, RINSING, DRYING
- Real-time cleaning fluid pressure monitoring
- Control system of fluids limit pressures
- Liquid and filter replacement notification - cycle counting
- Minimum level warning - cleaning and rinsing fluid
- Conductivity measurement - rinse
- 3-arm controlled rotation - for improving the quality of cleaning
- Filtration 1PR sandwich - integrated with automatic regulation for improving the quality of rinsing.
- Air Knife - swinging - for improving the quality of drying
- Common fluids draining with manual control
