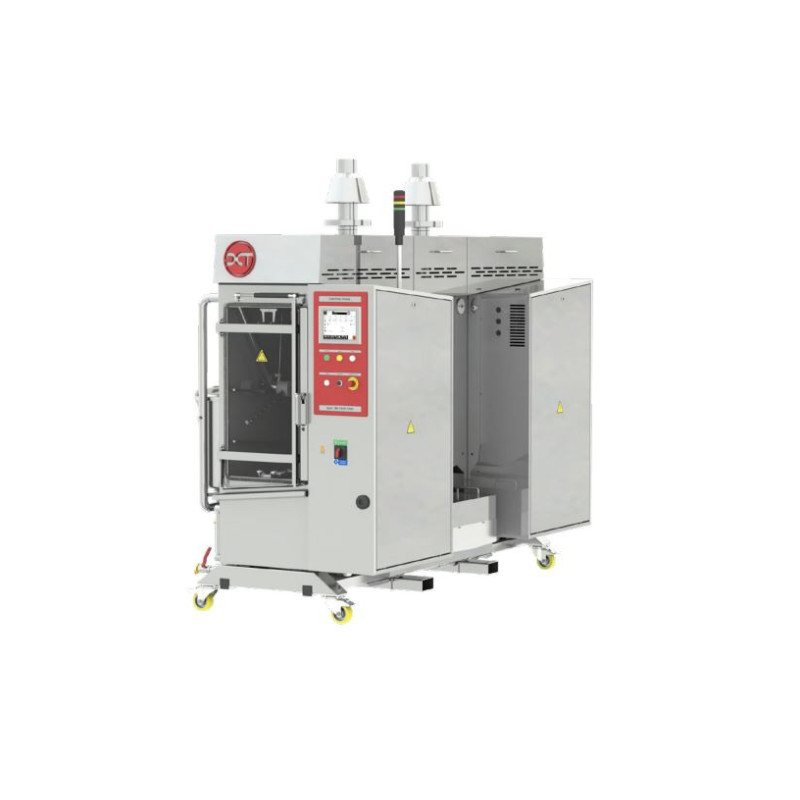

InJet® 388 TWIN CRRD “Sausage Dog” is developed primarily for high-capacity and precise plate cleaning after soldering. The cleaning system can also be used for high-capacity removal of solder pastes and SMT adhesives from stencils, PumpPrint, squeegees and misprints. Cleaning takes place in the first inlet chamber, after which the cleaned part is automatically transported to the central passage chamber where the first rinsing process takes place. The last third and outlet chambers are for the final rinse and drying process. Both chambers (inlet and outlet) can be used simultaneously, which increases machine capacity and reduces cross-contamination compared to single-chamber systems.
The InJet® 388 series cleaning systems represent unique vertical Spray-In-Air technology developed and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the shadowing effect commonly seen in horizontal cleaners, and maximizes the effiiency of the cleaning process as the cleaning fluid is sprayed directly onto the cleaned component.
All three chambers can be used in parallel, which increases the system’s capacity and reduces cross-contamination when compared with single-chamber devices.

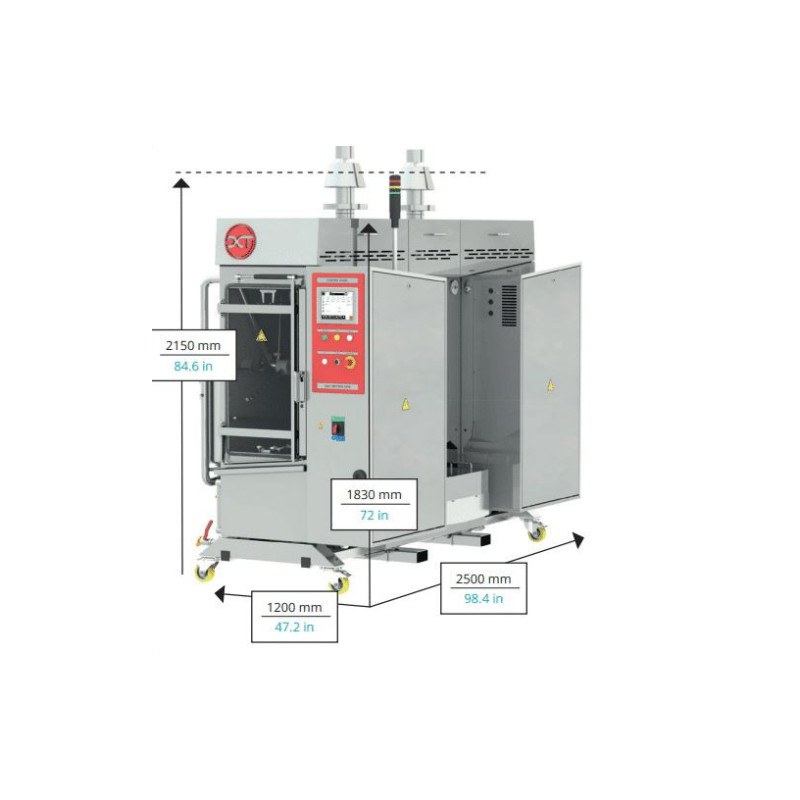

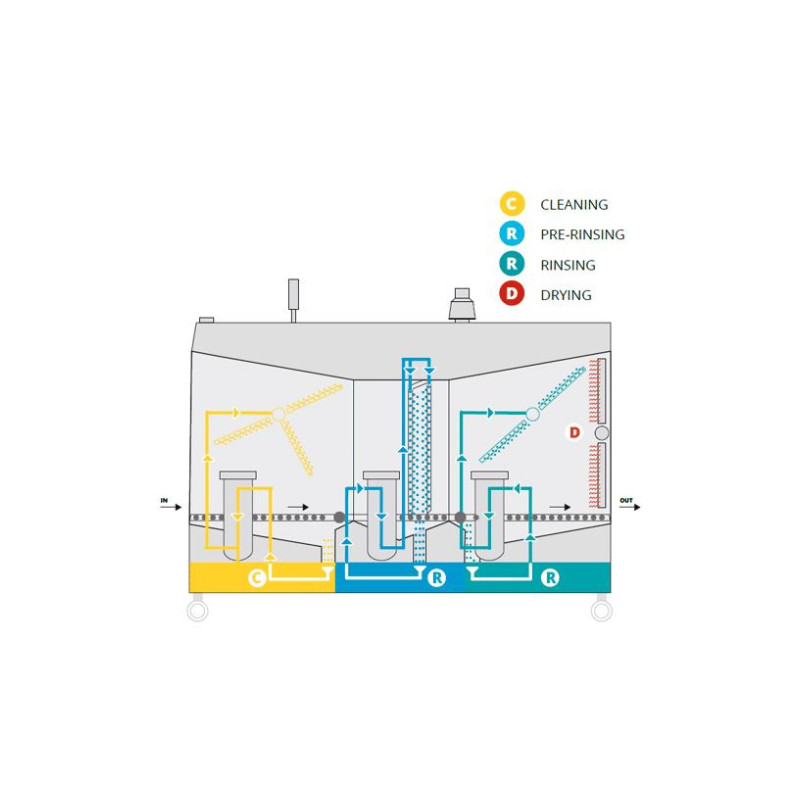

3 PROCESS CHAMBERS
4 PROCESSES - CLEANING, PRE-RINSING, RINSING, DRYING
- Real-time cleaning fluid pressure monitoring
- Control system of fluids limit pressures
- Liquid and filter replacement notification - cycle counting
- Minimum level warning - cleaning and rinsing fluid
- Conductivity measurement - pre-rinse and rinse
- Conductivity measurement - (pre)rinse 0-2000 µS - blocking optional
- 2nd touch panel on output chamber
- Air Knife in drying chamber
