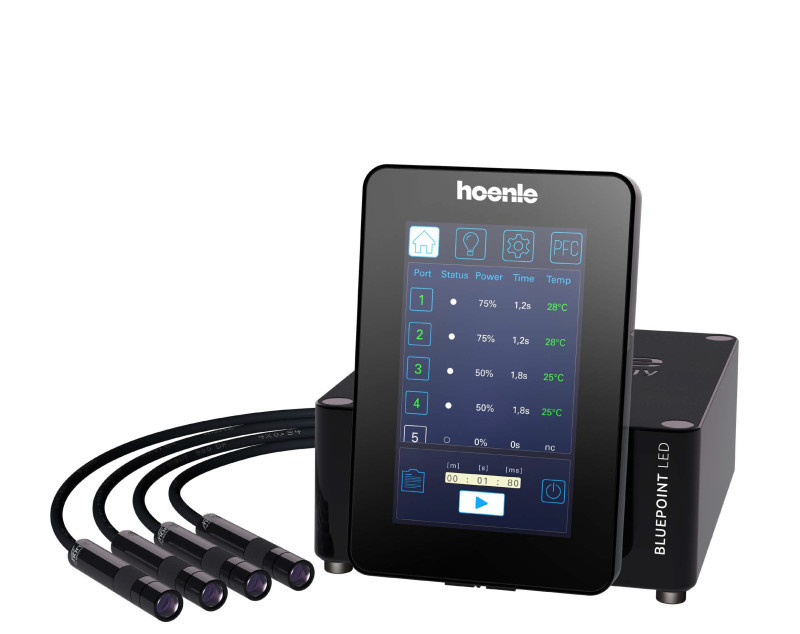

The new
bluepoint LED from Hoenle features a state-of-the-art touch display panel. Its operation is simple and intuitive. The display is detachable and can be mounted on the base station or on the machine.
A maximum of five
bluepoint LED can be combined with one display. Each bluepoint LED supplies up to four LED heads, so that a
total of 20 LED heads can be operated with one display.
Wavelength options of the bluepoint LED include 365 nm, 385 nm or 405 nm. Five different interchangeable lenses are available to create the desired irradiation area, optimally adapted to the individual application.
The bluepoint LED features a maximum intensity up to 20.000 mW/cm² and a power setting adjustable from 10% to 100%.
In addition, the bluepoint LED eco offers improved machine safety: a special interface ensures that the LEDs are reliably switched off in accordance with applicable safety guidelines – an important protection for operating personnel in automated production lines.
Typical applications for the bluepoint LED include spot curing of UV curable adhesives. The bluepoint LED can cure adhesives within seconds in automated production processes in the mass production of disposable medical devices, or in high-volume production in electronics and optical manufacturing.
Technical Data for Hoenle bluepoint LED:- Available wavelengths: 365 nm, 385 nm, 405 nm
- Intensity: up to 20.000 mW/cm² **
- LED service life: > 20.000 hours*
- Interfaces: I/Os and analog signal for power adjustment for each LED head. Option: BUS interface. Release safety circuit
- Process Flow Control (PFC): Up to 6 PFCs to program individual irradiation sequences
- Accessories: Foot switch, 90° deflection adapter
HÖNLE bluepoint LED
