TECHCON TS1254 1,8L PRESSURE TANK

Techcon TS1254 1,8L Pressure Tank

Anfrage für dieses Produkt!

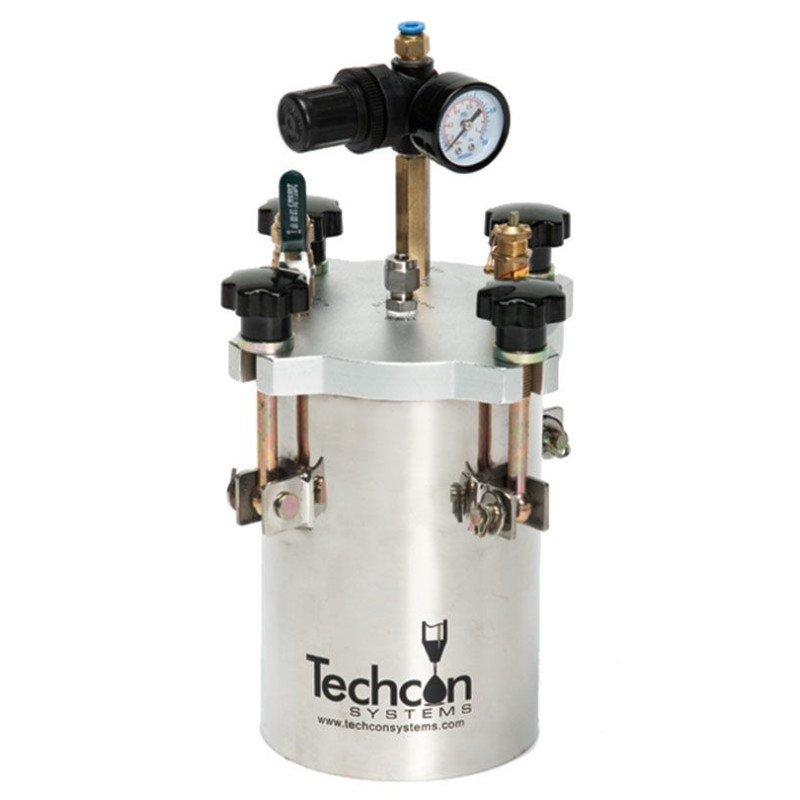

Techcon Systems TS1254 pressure tank is designed to accommodate low to medium viscosity fluids, including solvents, adhesives, as well as Cyanoacrylate (CA). Equiped with pressure relief (safety) valve stainless steel chamber, the TS1254 provides safe and secure dispensing for all applications. Airtight lid seal ensures there are no leak points for air or material.

The material feed line is located in the center of the lid to allow direct and continuous feed path from the material container to the valve inlet. The TS1254 is supplied with ¼” (6mm) Teflon tubing to provide resistant to all types of dispensing fluids. An optional 4mm tubing kit (TS1252-4MM) is also available.

Key Features:
  • Compatible with wide range of dispense fluids
  • Can be used with various dispensing valves
  • Pressure Relief (Safety) Valve to ensure safe dispensing operation
  • Exhaust valve to depressurize after dispense operation
  • One continuous tube for fluid dispensing from container to valve
  • Use two tubing sizes (1/4” (6mm) and 4 mm)
  • Easy to replace, disposable tubing after dispense operation
  • No material contact with fluid chamber and tube fitting
  • No cleaning required after dispense operation
  • Durable construction

Technical Specs:
  • Operating Pressure: 4.8bar max
  • Standard Tube Size: 6mm (4mm tubing optional)
  • Internal size: 165.1mm x 121mm
  • Volume: 1,8 Liters
